High Head Submersible Dewatering Pumps

Engineered for extreme lift and long-distance discharge.
Remko RHHS Series pumps are built for very high-head dewatering across demanding mining, quarrying and major construction sites.
Designed for open-cut and underground mines, deep excavations and long discharge systems where substantial lift and reliable operation are required.
Contact Your Pump Expert
Download Brochure
3.1 High Head Dewatering Pumps
  • Maximum Head
  • Up to 198 m
  • Maximum Flow
  • Up to 210 m³/hr
  • Outlet Sizes
  • 100–150 mm
  • Motor Power
  • 75–90 kW
Applications
▫️Open-cut mines and quarries
▫️Underground mines and shafts
▫️Deep excavations and tunnelling
▫️Long-distance and high-lift discharge
Benefits

High-Head Performance: Up to 198 m maximum discharge head.
Twin-Stage Hydraulics: Twin SS316L impellers and diffusers.
Integrated Monitoring: Temperature and seal-moisture sensors.
Heavy-Duty Construction: Built for demanding mining & major dewatering duty.

Where High-Head Dewatering Pumps Perform
Built for abrasive slurry transfer where seal wear, solids loading and maintenance downtime are common issues.
Best suited for:
  • Open-cut mine dewatering
  • Quarry pits and collection sumps
  • Deep benches and low-point drainage
  • High-lift water removal from active workings
Selection considerations:
  • Confirm total head, including elevation and pipe friction
  • Review suspended solids, abrasion and water characteristics
  • Check discharge routing, power supply and lifting access

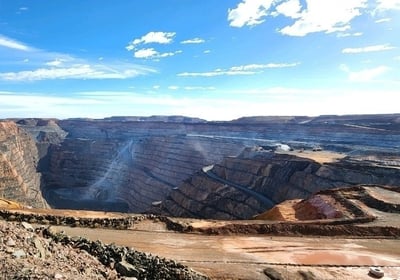

Mine-1
 For open-cut mine and quarry duties where high lift, rugged construction and dependable dewatering are required.
Contact Your Pump Expert
Peristaltic hose pumps integrated into complete dosing, batching, and process skid systems.
Best suited for:
  • Long rising mains and discharge pipelines
  • High-elevation water transfer
  • Remote discharge points
  • Duties beyond the head capability of standard dewatering pumps
Selection considerations:
  • Confirm total dynamic head and the complete system curve
  • Check pipe diameter, pressure rating and friction losses
  • Match the pump, starter or VFD arrangement to the operating duty

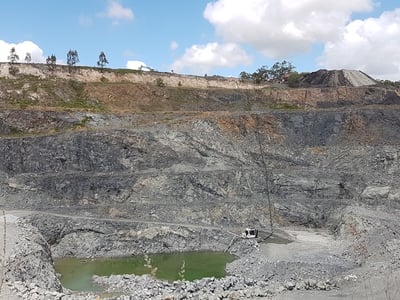

Mine dewatering pit
 For high-head transfer duties where elevation and long discharge pipework create significant system pressure.
Contact Your Pump Expert
Reliable for sludge feed, polymer dosing, digester systems, and dewatered solids transfer.
Best suited for:
  • Deep civil excavations
  • Tunnel and underground infrastructure projects
  • Construction shafts and major site sumps
  • Large-scale construction dewatering
Selection considerations:
  • Confirm expected inflow and required pump-down rate
  • Calculate static lift, pipe losses and discharge distance
  • Consider standby capacity, access and operating controls

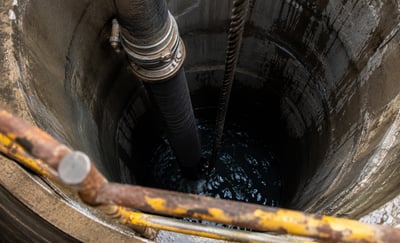

Industrial access shaft from above-1
 For major excavation and tunnelling projects where substantial lift and reliable site dewatering are critical.
Contact Your Pump Expert

Process & Utility Pumps

Reliable centrifugal and booster systems that support on-site water transfer, tank filling, and wash-down applications — built for everyday performance across civil construction environments.

Explore products:
Precision hose pump systems for acids, polymers, CIP chemicals, and controlled batching additives.
Best suited for:
  • Underground mine dewatering
  • Mine shafts and declines
  • Underground sumps and collection points
  • High-head transfer from below-ground workings
Selection considerations:
  • Confirm installation depth, total head and required flow
  • Review electrical configuration, cable requirements and controls
  • Plan lifting, access, monitoring and maintenance requirements


Underground Mine-1
 For underground mining duties where water must be lifted reliably from deep sumps, shafts and below-ground workings.
Contact Your Pump Expert
Gentle low-shear transfer for sauces, syrups, flavourings, and other sensitive food ingredients.
Best suited for:
  • PLC batching skids
  • sensor feedback loops
  • remote alarms
  • containerised dosing plants
Key strengths:
  • easy controls integration
  • repeatable outputs
  • compact footprint
  • future scalability
AUTOMATED DOSING SKID-1
 Ideal when the pump needs to become part of a smarter, controlled process system.
Contact Your Pump Expert

High-Head Dewatering Pump Configurations

Available in 75 kW and 90 kW configurations, the Remko RHHS Series can be selected around required flow, total head, discharge size, installation depth and operating conditions.

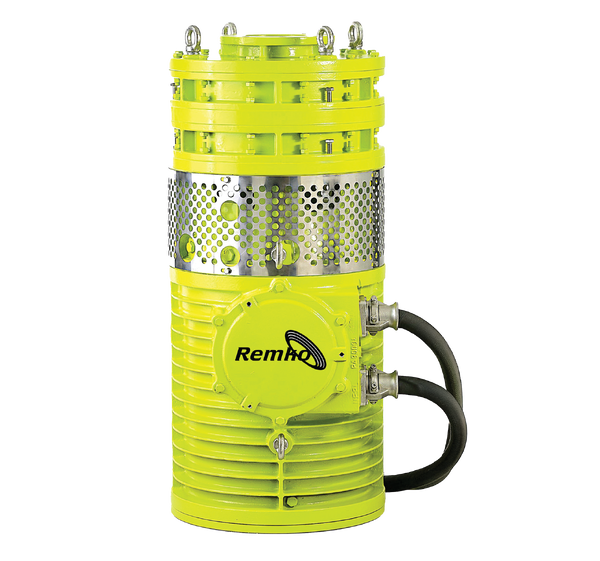

Remko RHHS-100 – 100 mm High Head Dewatering Pump
A powerful 75 kW dewatering pump for deep pits and long discharge mains.
  • Twin impeller + twin diffuser (316L stainless steel)
  • Double mechanical seal (tungsten carbide)
  • Heavy-duty four-bearing support system
  • Max Flow: 120 m³/hr | Max Head: 175 m
Contact Your Pump Expert
Download Brochure
3.1 High Head Dewatering Pumps
Remko RHHS-150 – 150 mm High Head Dewatering Pump
A high‑volume 90 kW unit for major mine dewatering and extended high‑head applications.
  • Twin impeller + twin diffuser (316L stainless steel)
  • Large 150 mm (6”) discharge for high-volume duty
  • Temperature and moisture protection with water cooling
  • Max Flow: 210 m³/hr | Max Head: 198 m
Contact Your Pump Expert
Download Brochure

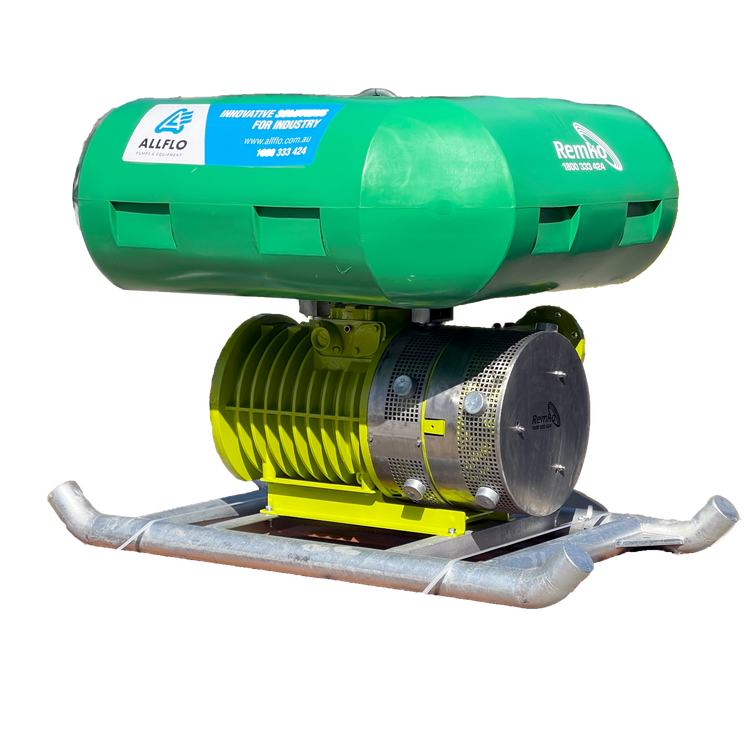

Cadia Submersible Pump-1

FAQ's

for High Head Dewatering Pumps

Browse other Submersible Pump options

Specify the right high-head dewatering pump with confidence.

Contact Allflo to confirm the required flow, total head, discharge size, electrical configuration and site conditions.
