Axial Flow Submersible Pumps

High-volume, low-head pumps designed for rapid water transfer, flood control and large-scale drainage.

Remko RSX Series axial flow pumps deliver very high flow rates where water must be moved quickly across relatively low discharge heads.

Compact submersible installation helps reduce surface infrastructure, noise and cooling requirements across stormwater, wastewater, irrigation and environmental applications.

Contact Your Pump Expert
Download Brochure

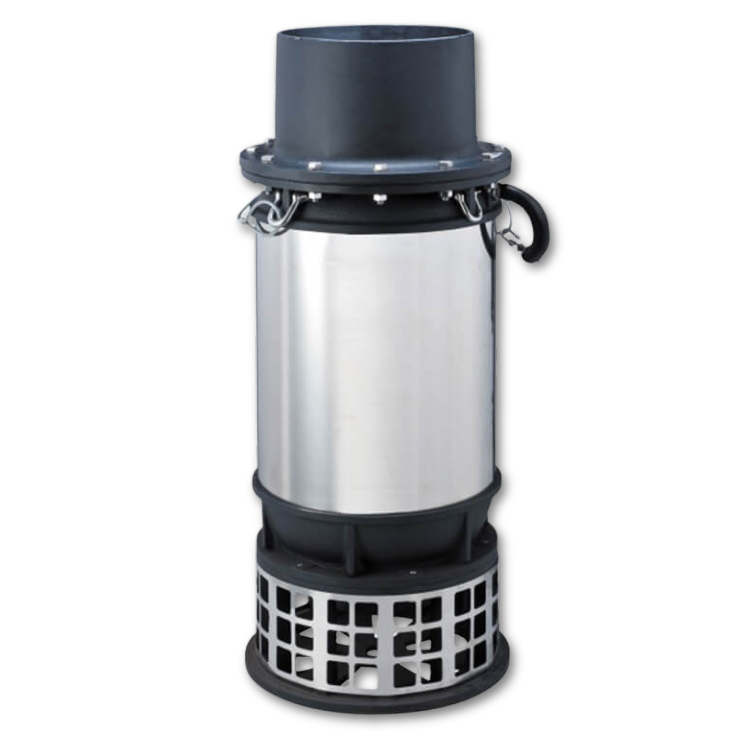

3.9 Axial Flow Pumps
  • Maximum Flow
  • Up to 1,333 L/sec
  • Maximum Head
  • Up to 9 m
  • Outlet Sizes
  • 150–700 mm
  • Power Range
  • 1.5–75 kW
Applications
▫️Stormwater and flood control
 ▫️High-volume site dewatering
 ▫️Wastewater treatment facilities
 ▫️Wetland and water-level management
Benefits

High-Volume Transfer: Moves very large water volumes at low head.
Compact Installation: Reduces above-ground infrastructure and operating noise.
Flexible Configuration: Available in free-standing and well-type installations.
Monitoring Options: Condition monitoring, seal probes and thermal protection.

Where Axial Flow Submersible Pumps Perform
Built for abrasive slurry transfer where seal wear, solids loading and maintenance downtime are common issues.
Built for abrasive slurry transfer where seal wear, solids loading and maintenance downtime are common issues.
Best suited for:
  • Floodwater removal
  • Stormwater pumping stations
  • Retention basins and drainage channels
  • Large-volume emergency water transfer
Selection considerations:
  • Confirm peak inflow and required pump-down rate
  • Calculate operating head and discharge conditions
  • Review debris, solids and intake-screening requirements

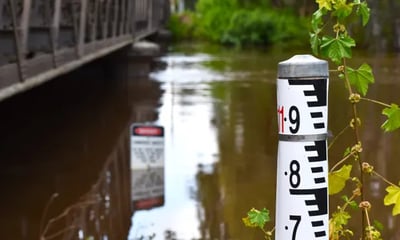

60001
 For flood-control and stormwater duties where very high flow and rapid water removal are critical.
Contact Your Pump Expert
Peristaltic hose pumps integrated into complete dosing, batching, and process skid systems.
Built for abrasive slurry transfer where seal wear, solids loading and maintenance downtime are common issues.
Best suited for:
  • Wetland water-level management
  • Environmental water transfer
  • Retention ponds and lagoons
  • Controlled movement between low-head water bodies
Selection considerations:
  • Confirm target water levels and required transfer rate
  • Review environmental and intake-screening requirements
  • Consider monitoring, corrosion protection and seasonal operation
Wetlands & Water-Level Control-1
For environmental water-management duties where controlled, high-volume movement is required at low head.
Contact Your Pump Expert
Reliable for sludge feed, polymer dosing, digester systems, and dewatered solids transfer.
Built for abrasive slurry transfer where seal wear, solids loading and maintenance downtime are common issues.
Best suited for:
  • Irrigation-channel transfer
  • Temporary bypass pumping
  • Water movement between canals and storages
  • Large-volume rural water transfer
Selection considerations:
  • Confirm required flow, head and operating duration
  • Review intake conditions and water quality
  • Match the installation type to site access and infrastructure

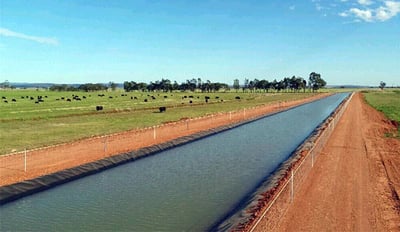

Irrigation Drainage2-1
 For irrigation and bypass duties requiring high-volume transfer with minimal discharge head.
Contact Your Pump Expert

Process & Utility Pumps

Reliable centrifugal and booster systems that support on-site water transfer, tank filling, and wash-down applications — built for everyday performance across civil construction environments.

Explore products:
Precision hose pump systems for acids, polymers, CIP chemicals, and controlled batching additives.
Built for abrasive slurry transfer where seal wear, solids loading and maintenance downtime are common issues.
Best suited for:
  • Wastewater treatment channels
  • Large-volume process-water transfer
  • Pump stations and equalisation basins
  • Low-head transfer between treatment stages
Selection considerations:
  • Confirm liquid characteristics and solids content
  • Review corrosion protection and material requirements
  • Check access, monitoring and maintenance arrangements

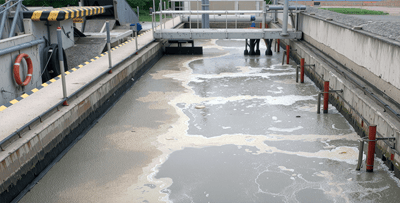

wastewater
 For wastewater-treatment duties where large water volumes must be moved efficiently across low-head systems.
Contact Your Pump Expert
Gentle low-shear transfer for sauces, syrups, flavourings, and other sensitive food ingredients.
Best suited for:
  • PLC batching skids
  • sensor feedback loops
  • remote alarms
  • containerised dosing plants
Key strengths:
  • easy controls integration
  • repeatable outputs
  • compact footprint
  • future scalability
AUTOMATED DOSING SKID-1
 Ideal when the pump needs to become part of a smarter, controlled process system.
Contact Your Pump Expert

Axial Flow Pump Configurations

Available from 150 mm to 700 mm outlet sizes, the Remko RSX Series can be selected around flow, head, installation type, solids passage, monitoring requirements and site conditions.
Compact High-Flow Axial Pumps

150–300 mm outlets | 1.5–11 kW

Compact well-type models for stormwater, wastewater, irrigation and high-volume, low-head water transfer.
  • Models: RSX.150.15, RSX.300.110
  • Outlet sizes: 150–300 mm
  • Power range: 1.5–11 kW
  • Maximum head: Up to 9 m across the RSX range
  • Solids passage: 20–23 mm
  • Electrical supply: 415 V
Selection note:
Best suited where compact well-type installation and high-volume transfer are required at relatively low discharge head.
Contact Your Pump Expert
Download Brochure

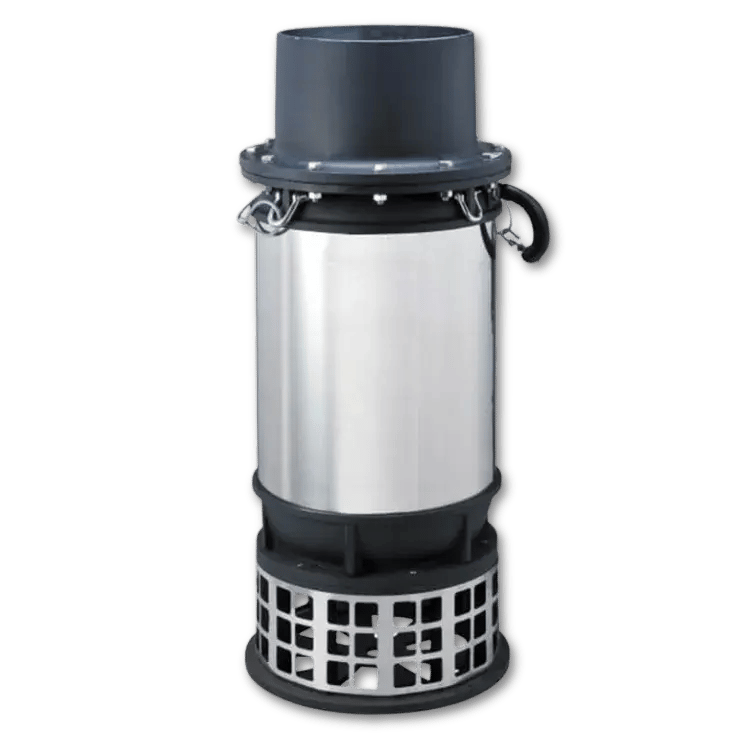

3.9 Axial Flow Pumps
Large-Volume Axial Pump

550 mm outlets | 37 kW

Large-capacity model for stormwater, flood control, wastewater treatment and major low-head water-transfer duties.
  • Model: RSX.550.370
  • Outlet size: 550 mm
  • Power: 37 kW
  • Motor speed: 750 rpm
  • Electrical Supply: 415 V
  • Installation: Free-standing or well type
Selection note:
Best suited where compact well-type installation and high-volume transfer are required at relatively low discharge head.
Contact Your Pump Expert
Download Brochure

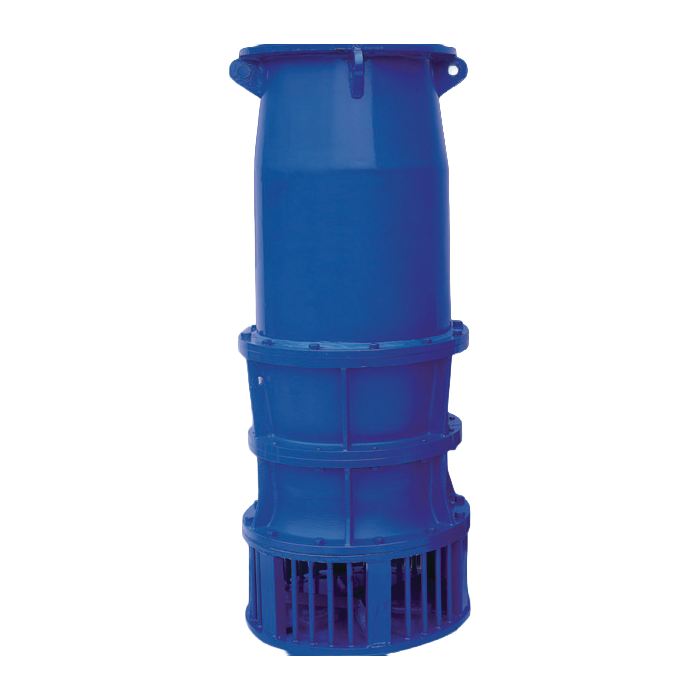

RSX.550.370 Axial Submersible
 Up to 1,333 L/sec Axial Flow Pumps

700 mm outlets | 55-75 kW

The highest-capacity RSX models for major flood-control, infrastructure and large-volume water-transfer duties.
  • Models: RSX.700.550 and RSX.700.750
  • Outlet size: 700 mm
  • Power range: 55-75 kW
  • Maximum flow: Up to 1,333 L/sec
  • Motor speed: 600 rpm
  • Electrical supply: 415 V
  • Installation: Free-standing or well type
Selection note:
Best suited where compact well-type installation and high-volume transfer are required at relatively low discharge head.
Contact Your Pump Expert
Download Brochure

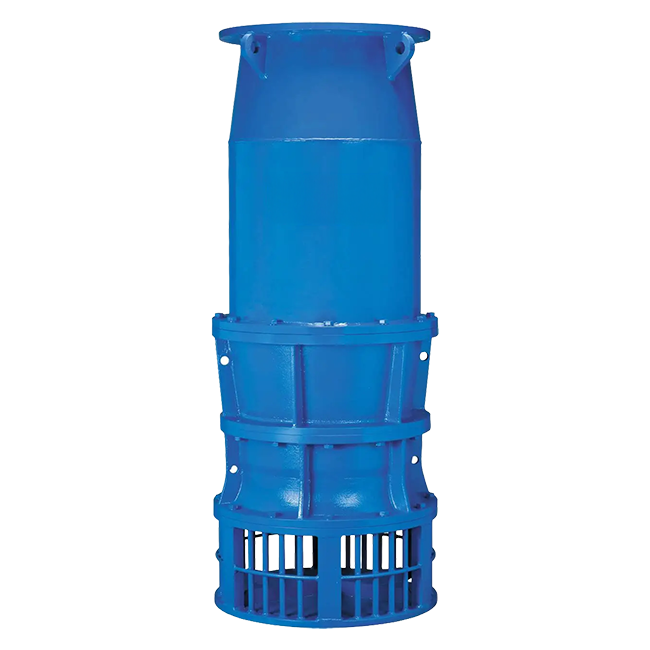

RSX.700.550 Axial Flow Pump

FAQ's

for Submersible Axial Flow Pumps

Browse other Submersible Pump Series

High-volume water movement without unnecessary complexity.

Contact Allflo to select the right submersible axial flow pump for your required flow, operating head, installation type and site conditions.
